Vmix (SRT)

  • Updated

Live streaming SRT to LiveU Studio with Vmix

  • Check that you are in the Testing phase .

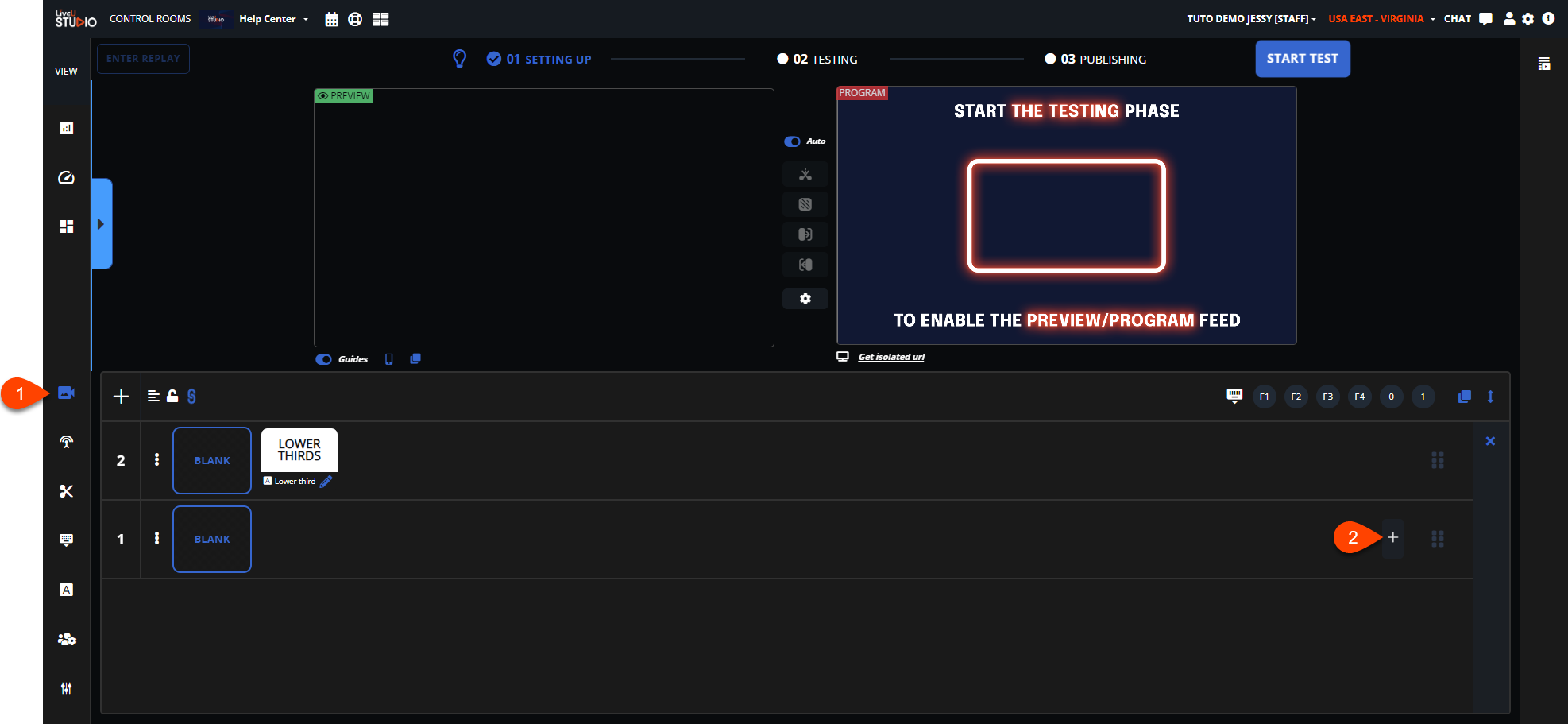

  • Go to the Production (1) Studio and add an input (2).
  • Add a Other SRT encoder input (Live Source -> Encoder (push) -> Other SRT encoder).
  • Keep the link aside for later.
  • Enter the Vmix SRT output settings.

A small summary of the settings

  • Hostname:

Use the address/server proposed by LiveU Studio when creating the input (See below).

 Specific hostname list:

    • US West - Oregon: us-ore.studio.liveu.tv
    • US East - Virginia: us-vir.studio.liveu.tv
    • LATAM - Brazil: sa-sao.studio.liveu.tv
    • EU - Ireland: eu-irl.studio.liveu.tv
    • Asia Pacific - Mumbai: ap-mum.studio.liveu.tv
    • Asia Pacific - Singapore: ap-sin.studio.liveu.tv
    • Asia Pacific - Seoul: ap-seo.studio.liveu.tv
    • Asia Pacific - Tokyo: ap-tok.studio.liveu.tv
    • Asia Pacific - Sydney: ap-syd.studio.liveu.tv
  • Destination port: 8080
  • Stream ID: See below
  • Quality: H264 or H265 (HEVC)

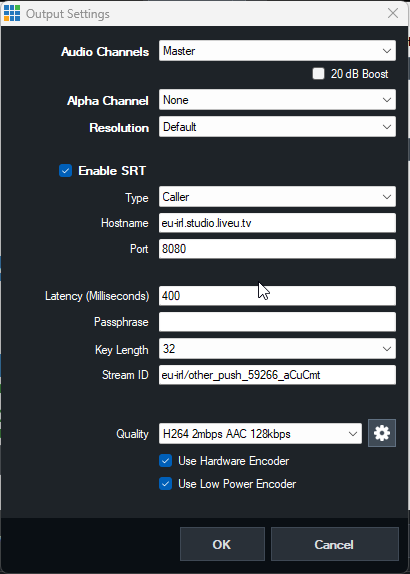

  • Your SRT Output setup should look like this:
  • Check that the feed is well received on the LiveU Studio side.

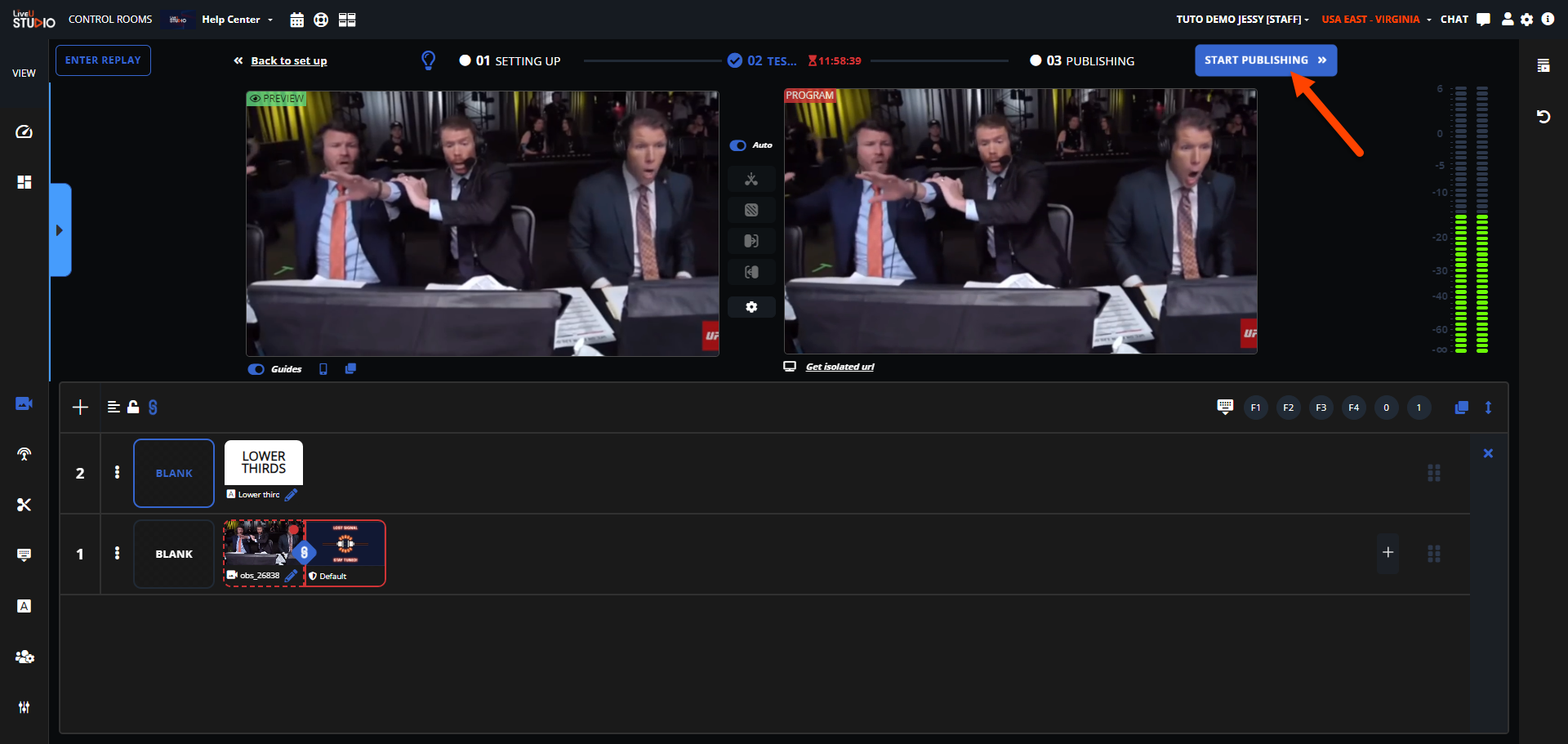

When ready, Start publishing & record!

In case the stream is not received on the LiveU Studio side, check your Vmix configuration and gradually increase the latency until the stream is correctly received.
