How to Publish from Studio to LiveU Ingest
Prerequisites:
-Valid Ingest server and service enabled
-LiveU decoder (LU2000/LU4000) used as Multipoint
Turn the decoder into Multipoint
Assign the destination channel from LiveU Central & Assign an ingest server

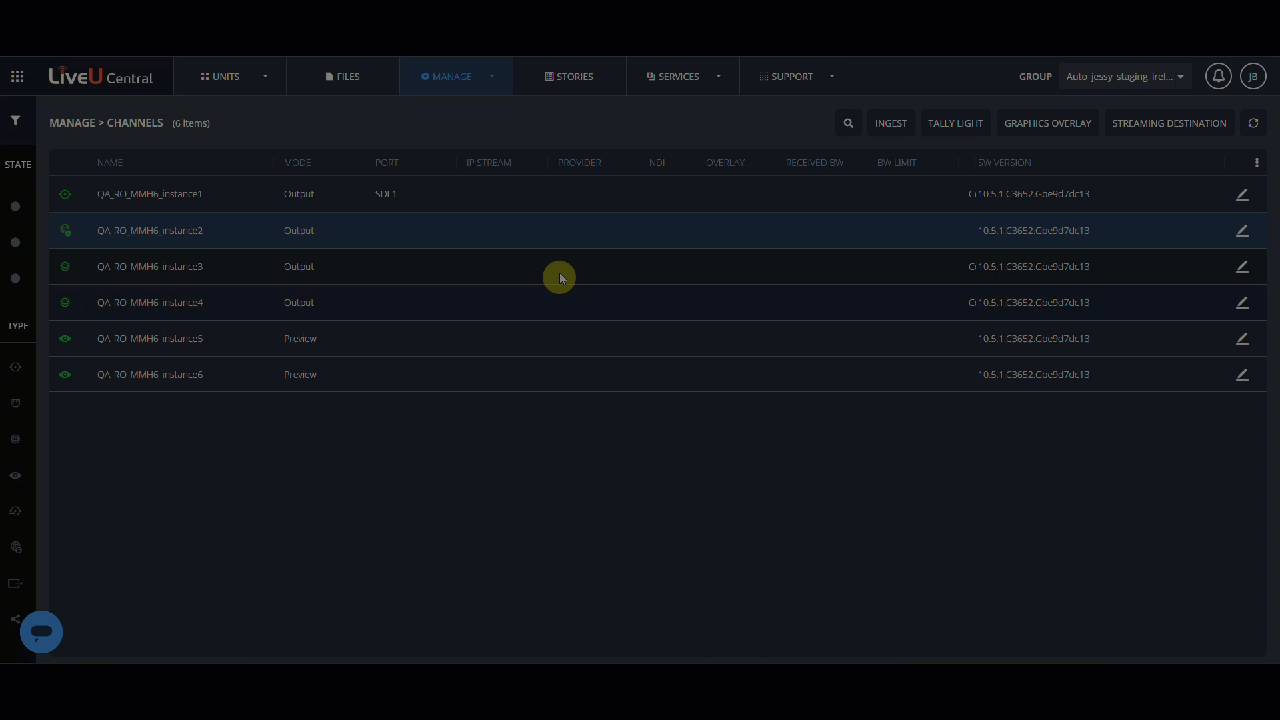

In LiveU Central -> Units section -> Select from the Multipoint all destination channels (including the one linked to the Ingest server).
Output LRT from Studio

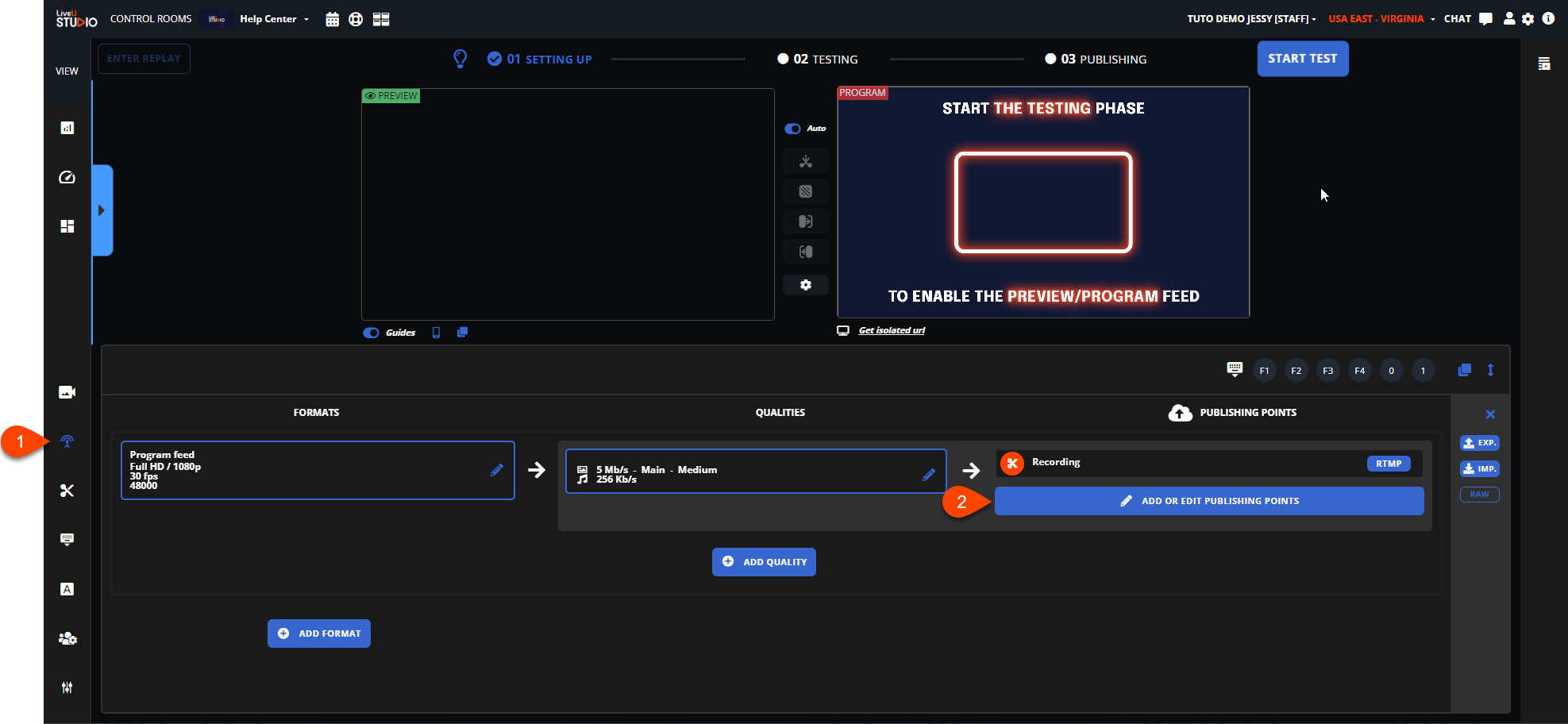

- Once in Studio, go to the Publish panel (1).
- Add or edit a publishing points (2).
- Go to LRT (only visible for the main/recording quality, on the top if you have multy quality or format).
- Add a publishing point.
- Select in the list the Multipoint channel:
Please note that if you publish in LRT on a physical channel located on your premises, your company's network parameters may be relevant and this may require you to open some network ports needed to send and receive this type of stream.
Please refer to our network prerequisites in case of problems publishing in LRT to a physical channel.
