ISO Recording & Clipping

  • Updated

LiveU Studio has introduced a powerful new feature – ISO Recording – which allows you to record up to 6 individual live video sources. This guide will walk you through the steps to set up, manage, and use ISO Recording within LiveU Studio.

What is ISO Recording?

ISO (Isolated) Recording allows you to record each individual camera or video source separately. This is useful for post-production, giving you more control to edit, replay, or repurpose footage from each input without losing any details from the live broadcast.

Step-by-Step Guide to Using ISO Recording

Enabling ISO Recording

  • From the studio production (A).
  • Open the Media bin on the right (B).
  • Select the input(s) for wich you want to have ISO record & click "Start recording"(C).

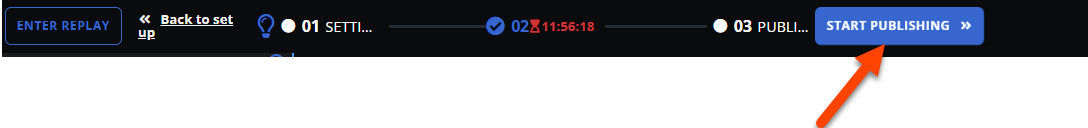

  • When ready to record, start publishing & Recording.

  • Open the media bin in a separate window (1&2)

You'll find all your VODs, ISO recordings (with the red dot), playlists, Replay clips. If needed you can:

  • Filter per input type on the left
  • Search per name on the top right
  • Sort by duration, etc.

Downloading my ISO recordings

All ISO recordings are automatically segmented at fixed time interval (you can define the duration from 30 min/1h/2h).

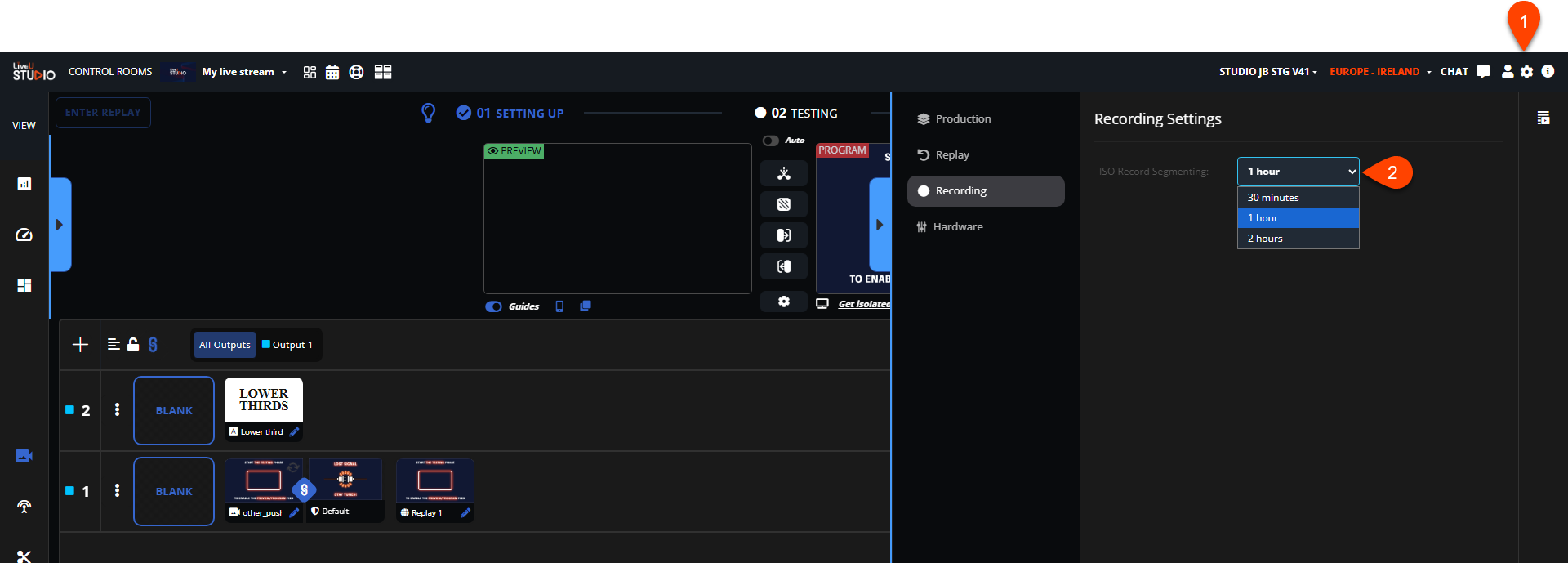

To configure the ISO segments duration:

  • Open Settings on the top right corner.
  • Navigate to the Recording section.
  • Locate ISO Record Segmenting.
  • Select the desired clip duration.

To download them :

  • Open the media bin
  • Open the Recording segment folder
  • You'll find all your Input(s) ISO recording(s) segments.

Creating a clip from my ISO recording

  • Double click on the ISO recording you want to create a clip from.
  • Set the wished mark In & Mark out point
  • Click on Make clip (Clip generation can take a couple minutes depending on the duration)


  • Once the clip in available in the Media bin, you can download the .mp4 clip of your ISO recording.

  • You can go further with creating a playlist using that clip or load that Replay clip into a Media player.

Please note that ISO recordings are stored for 7 days, that means you can create clips from ISO recordings up to 7 days after an event. ISO Records Clips duration are limited to max 2h. Only 16:9 feeds can be ISO recorded.
